Kumarappan Muthuraman

Falcon 3D · 2017 – 2020

Heavy-duty linear actuator

A fast, rigid actuator for a racing simulator

1,200 mm/s
Travel speed
A full racing-simulator rig with a bucket seat, wheel and screens, mounted on the actuators
Role
Founder & CEO
Organization
Falcon 3D
Period
2017 – 2020
Tools and methods
  • SolidWorks
  • Fabrication
  • Gantry and motion design
  • Structural load design
  • CNC and laser cutting

A heavy-duty linear actuator for a racing simulator, with a Delrin gantry block for low-friction travel, spider couplings to absorb vibration, and servo motors.

What I built

  • A Delrin gantry block for smooth, low-friction movement.
  • Spider couplings to absorb vibration.
  • Servo motors driving 1,200 mm/s travel.

Result

The actuators ran in a full racing-simulator rig, and one complete unit was sold to DRDO, India’s Defence Research and Development Organisation.

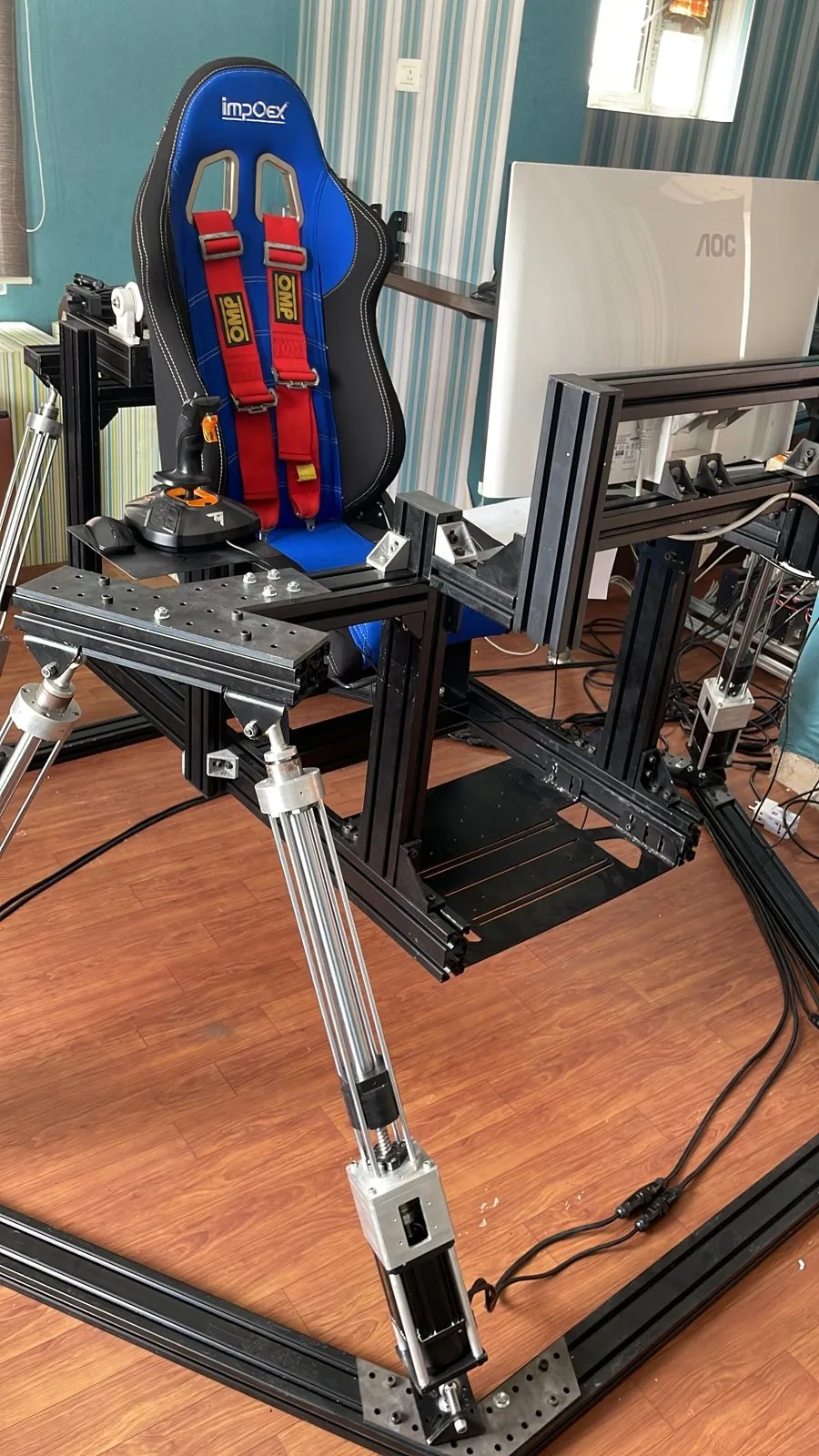

Racing seat mounted on linear actuators
Fig. 1. Seat mounted on the actuators

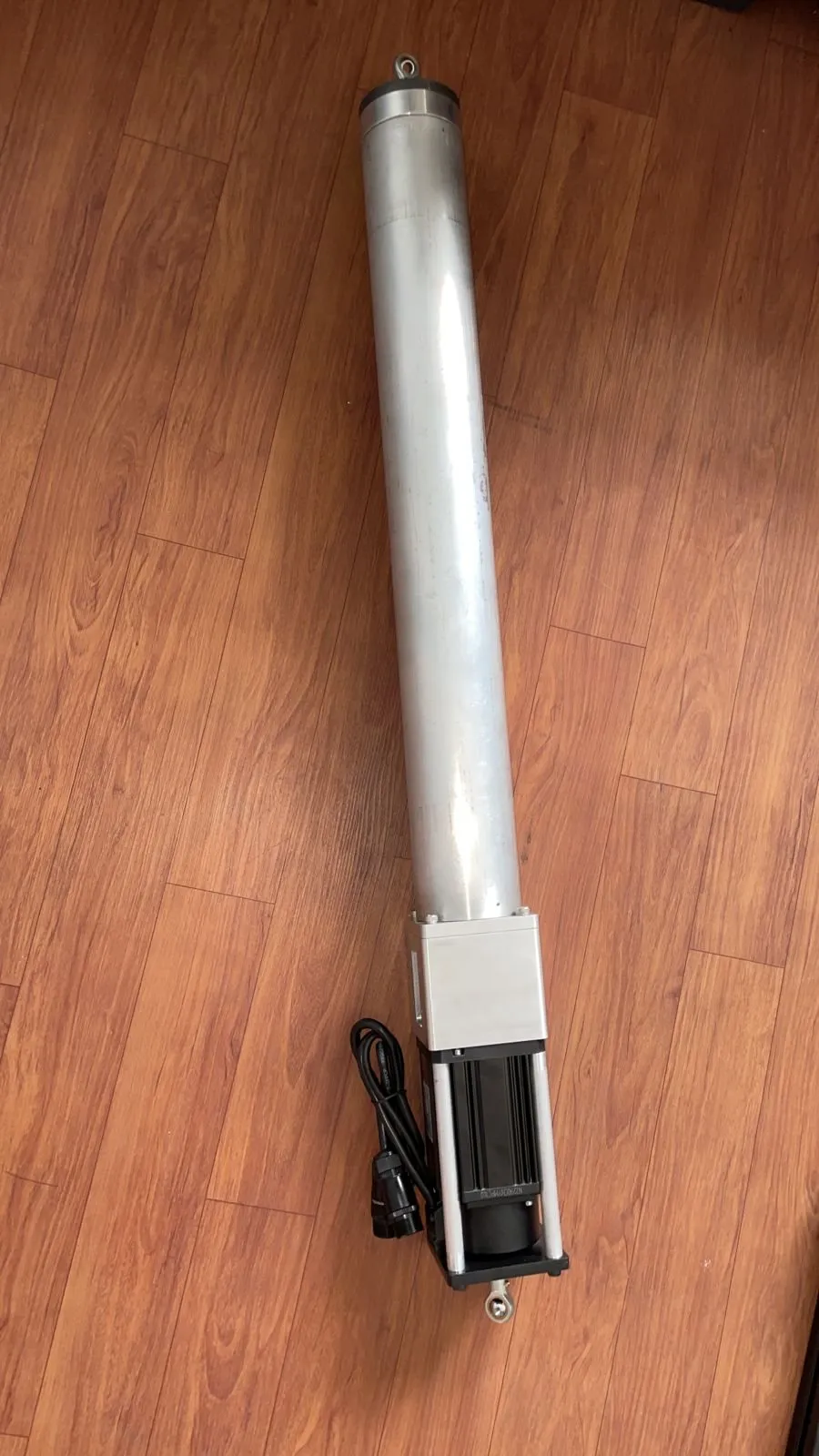

An assembled actuator with its motor
Fig. 2. An assembled actuator

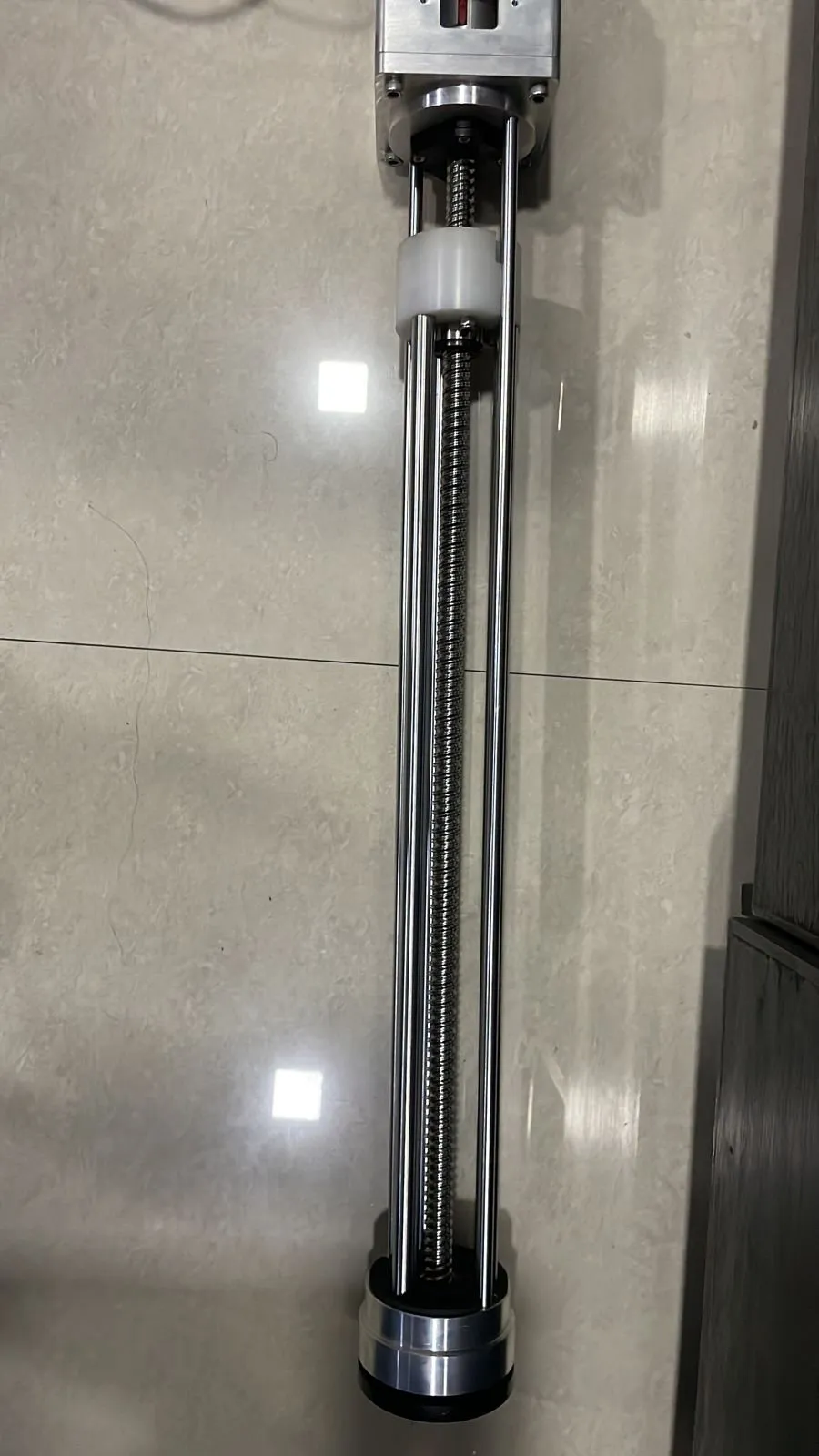

Ball screw inside the actuator
Fig. 3. Ball screw drive

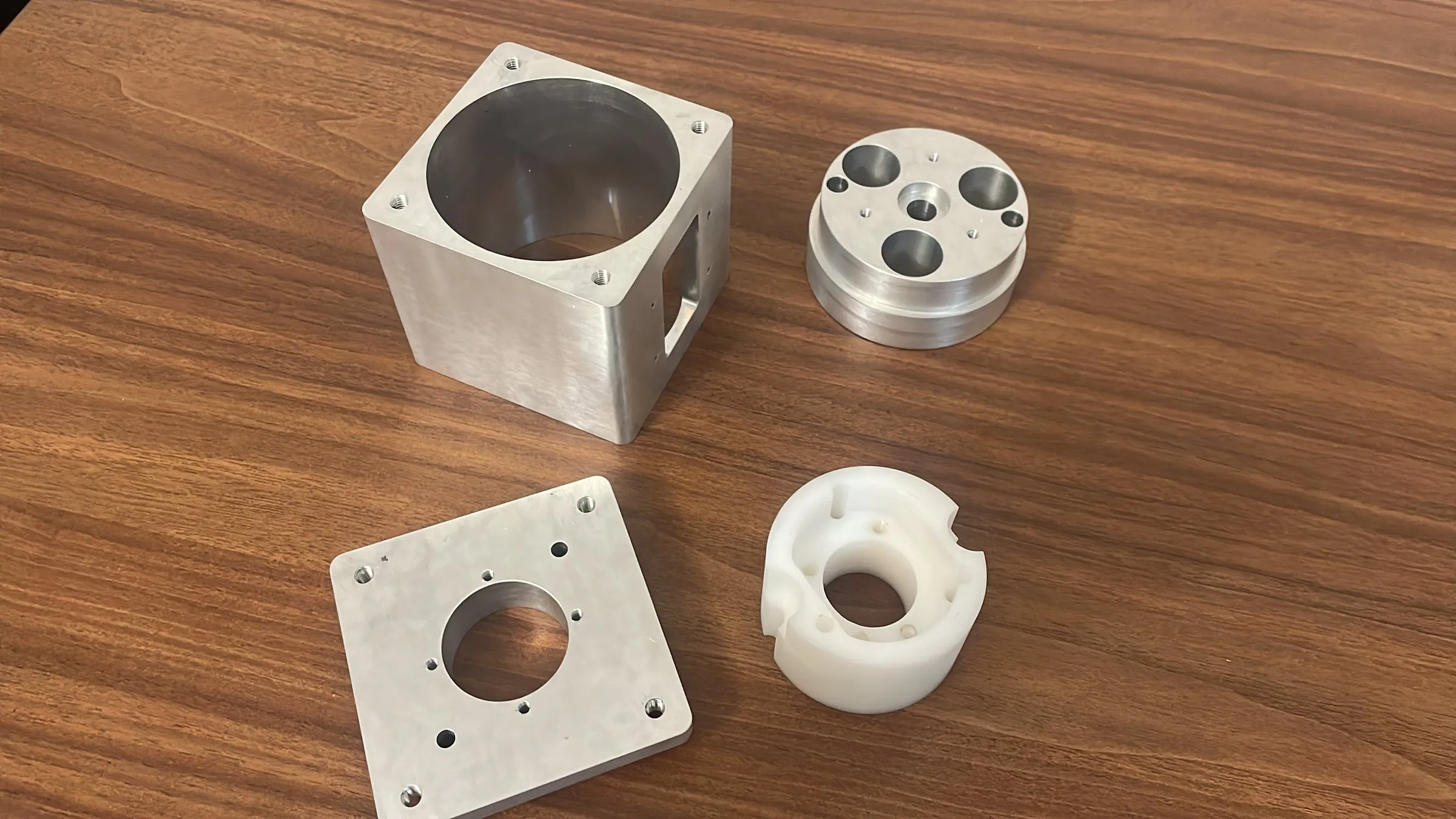

Machined aluminum motor-mount parts and a white Delrin block
Fig. 4. Machined mounts and the Delrin gantry block

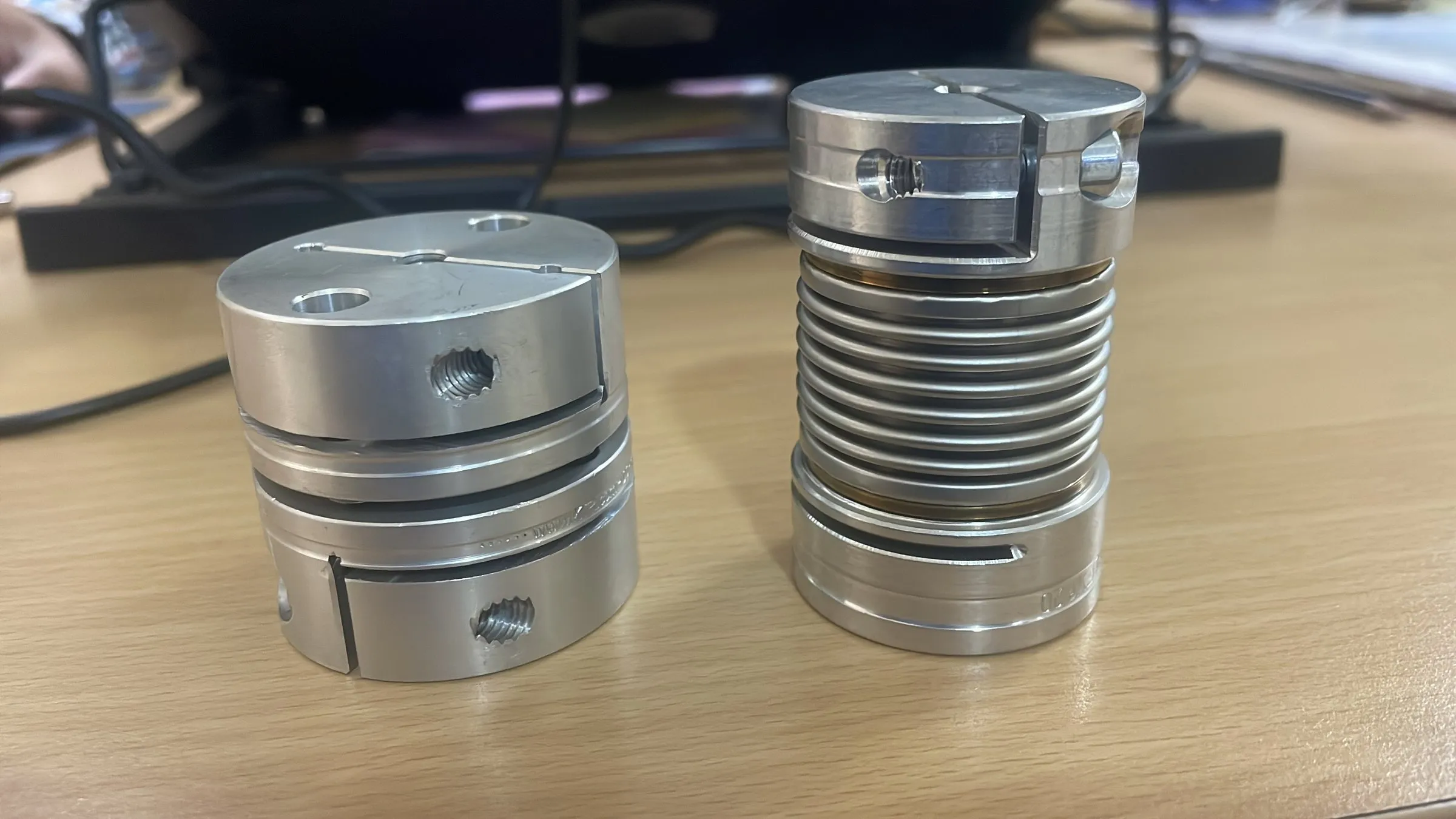

Two shaft couplings
Fig. 5. Shaft couplings
