Micro-volume syringe pump
An in-house pump that replaced a costly third-party part
- 0.1 µL
- Aspiration accuracy
- 3 months
- Full R&D cycle
- Role
- Senior Engineer, R&D
- Organization
- PIIKO
- Period
- 2021 – 2024
- Tools and methods
- SolidWorks
- CNC machining
- Lathe
- Rapid prototyping
- Precision mechanical design
- Stepper motion control
- Lead-screw drive
- Sensor integration
I designed and built a micro-volume syringe pump for the CBC analyzer, taking it from an SLA-printed prototype to a machined stainless-steel unit in three months.
Why build it
The analyzer depended on an expensive third-party pump. Building our own removed that dependency and cut the per-unit cost of the platform.
What I built

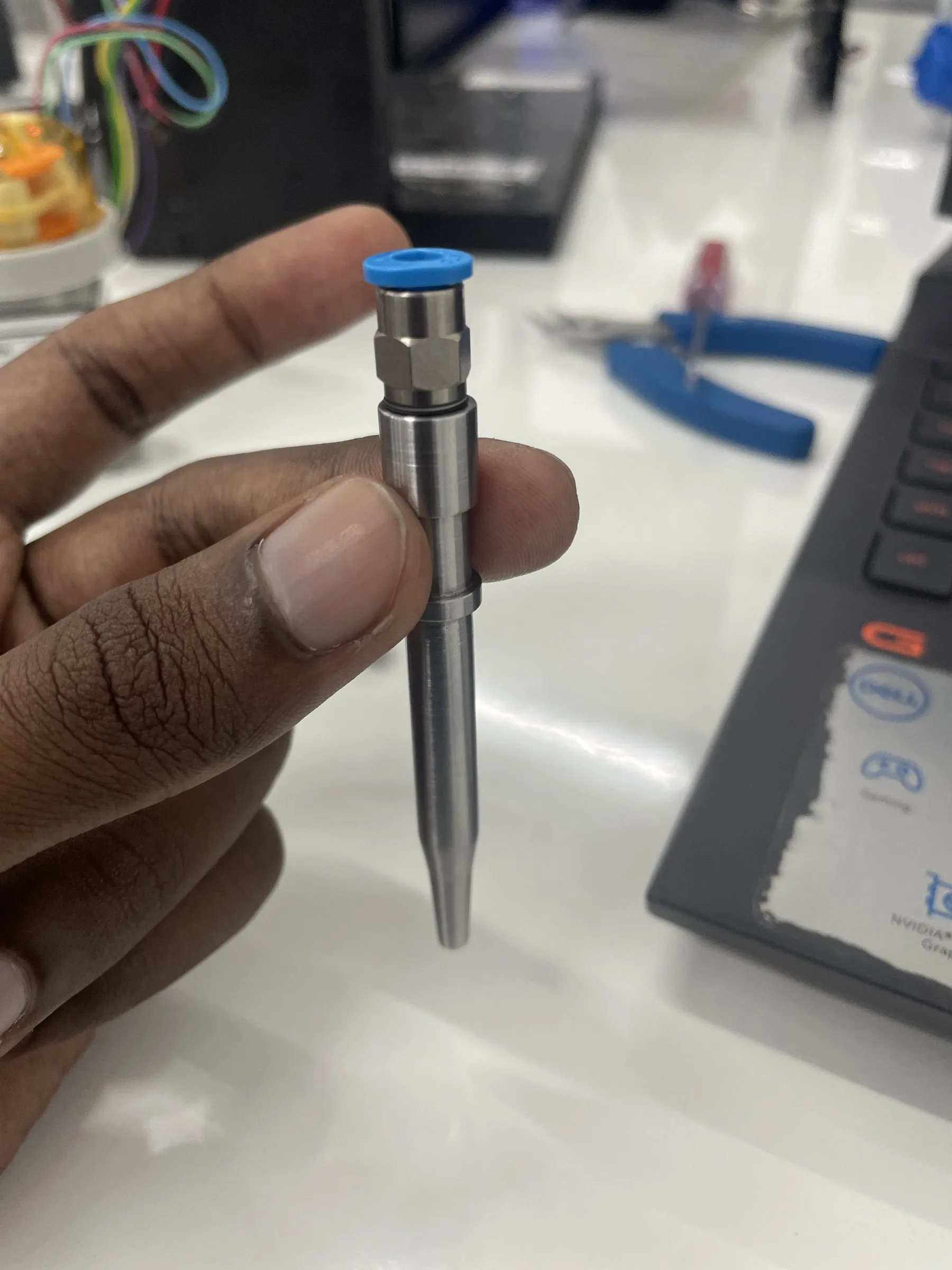

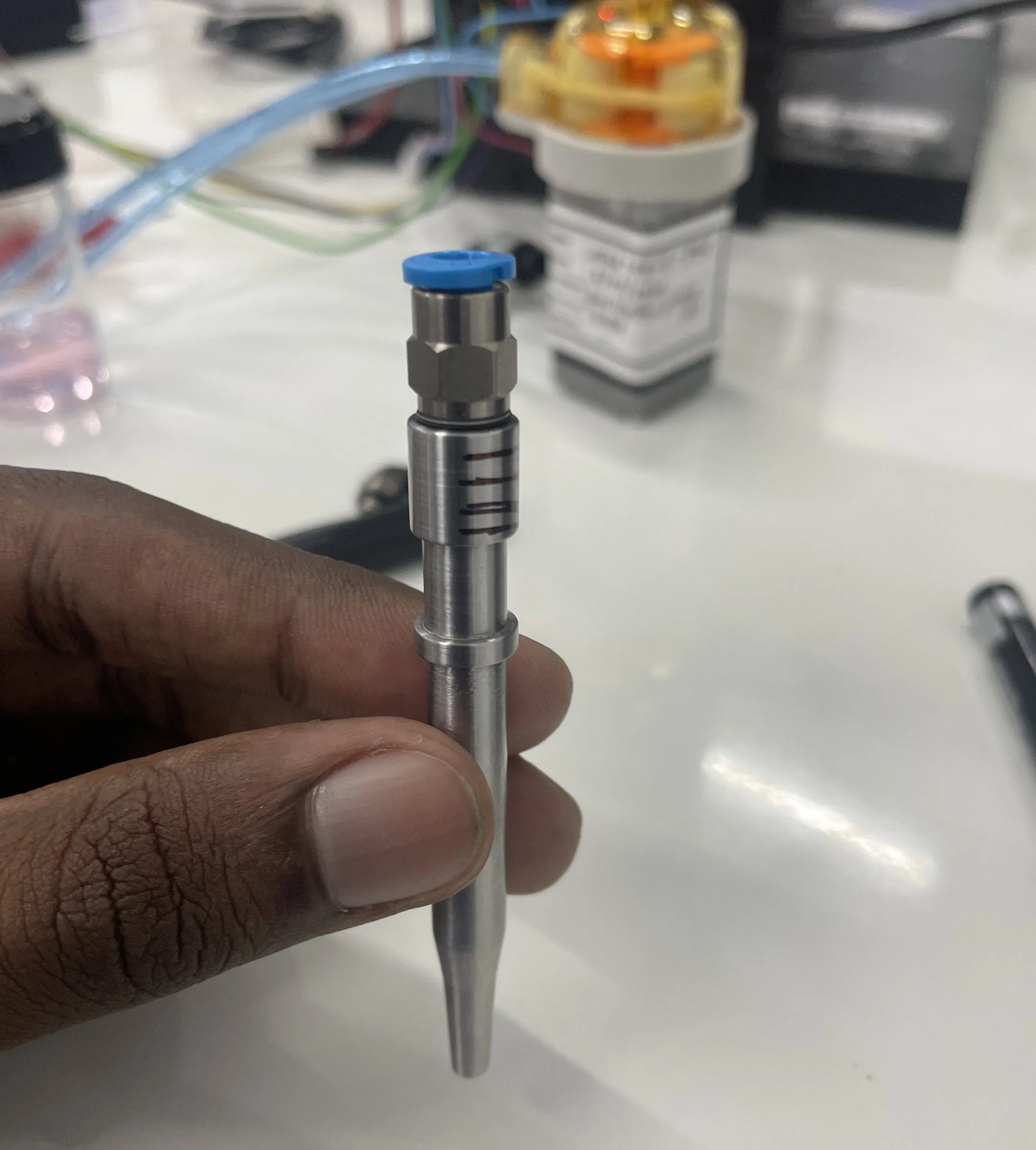

A stepper motor drives the syringe through a lead screw and a flexible coupling, and a machined stainless-steel probe aspirates and dispenses the sample.
- Iterated from an SLA 3D-printed prototype to a fully machined stainless-steel unit.
- Reached 0.1 µL aspiration accuracy.
- Integrated a pressure sensor for real-time health monitoring and failure prediction.
Result
The full R&D cycle took three months. The pump went into the CBC analyzer platform, removing a third-party dependency and reducing per-unit cost.
